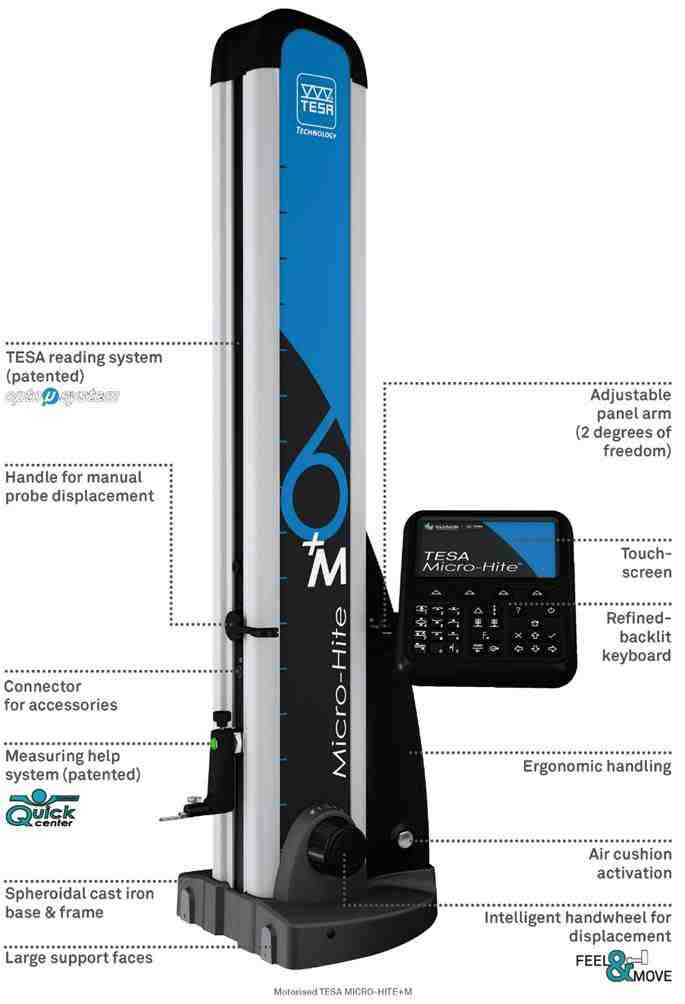

New!  Micro-hite  3,6, 9  PLUS M  (Motorized )

Payment Options: Open account application!

Shopping Cart, only for Paypal or Credit Cards !

Accuracy Max Perm error (um) L=MM                 Repeatability                         Maximum Perpendicularity Error
350mm (14") Model 1.8+2(L/1000)                          2um =0.00079"                       350mm (14") Model  7um =.000275in
600mm (24") Model 1.8+2(L/1000)                                                                            600mm (24") Model  9um =.00035in
900mm (36") Model 1.8+2(L/1000)                                                                            900mm (36") Model 11um=..00043in

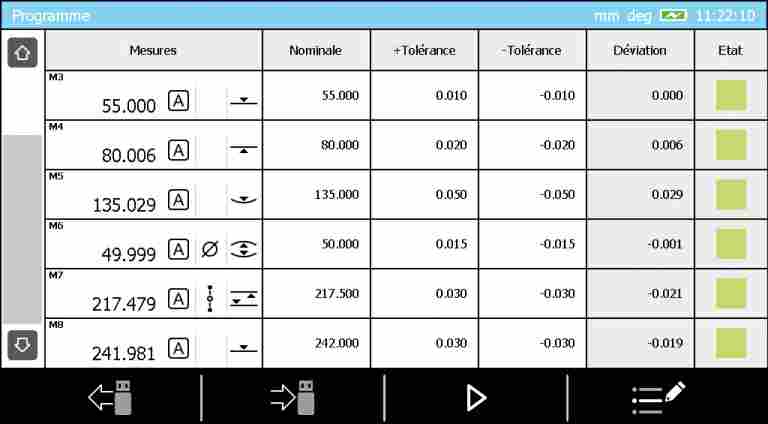

Digit Display
Hybrid  touch or backlit keyboard entry

Color display size 84x152mm

USB Data storage .txt files
Resolution: .01mm, .001mm, .0001mm (.001in, .0001in, .000010in)

Measuring Head

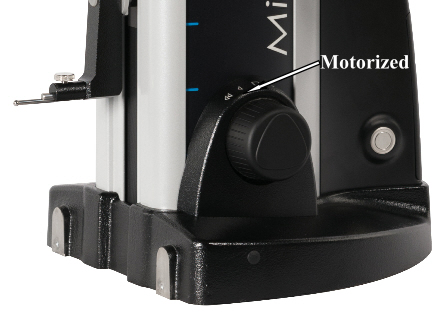

Motorized

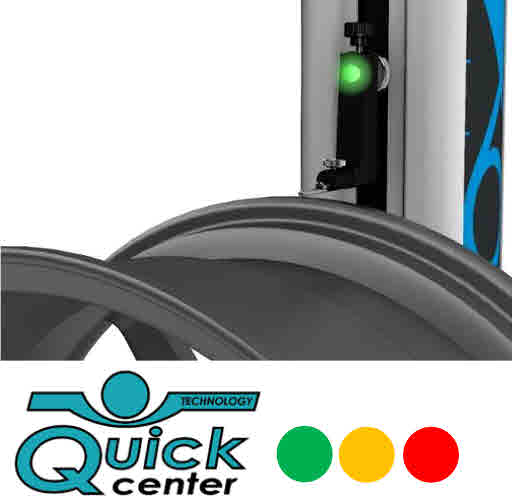

featuring LED lights for hit status

Measuring System
Precision Glass Scale

Gage Movement
Air cushion movement for easy, precise positioning

Battery Packs
For continuous operation, one battery pack supplies full-shift power while the second set is being recharged. Batteries may be recharged on or off-line

Dynamic Probes
Trigger-switch probe mechanism for “on-the-fly ” bidirectional measurements

Standard Accessories:

Battery Pack and AC charger

Setting Master

Probe holder and  5mm probe

SCS Calibration Certificate

Tesa-hite   Tesa-hite Magna   Micro-hite  Micro-hite Plus M  Accessory probe kits

  Accessories Current Models        Accessories Legacy (older Models)
