New! Micro-hite 3,6, 9 Manual with and without fine
Adjust
Payment Options:
Shopping Cart, only for Paypal or Credit Cards !
New Tesa Micro-Hite Manual with and Without Fine Adjust">
Accuracy Max Perm error (um) L=MM
Repeatability
Maximum Perpendicularity Error
350mm (14") Model 2+2(L/1000)
2um =0.00079"
350mm (14") Model 7um=.000275in
600mm (24") Model 2+2(L/1000)
600mm (24") Model 9um =.00035in
900mm (36") Model 2+2(L/1000)
900mm (36") Model 11um=..00043in
Digit Display
Hybrid touch or backlit keyboard entry
Color display size 84x152mm
USB Data storage .txt files
Resolution: .01mm, .001mm, .0001mm (.001in, .0001in,
.000010in)

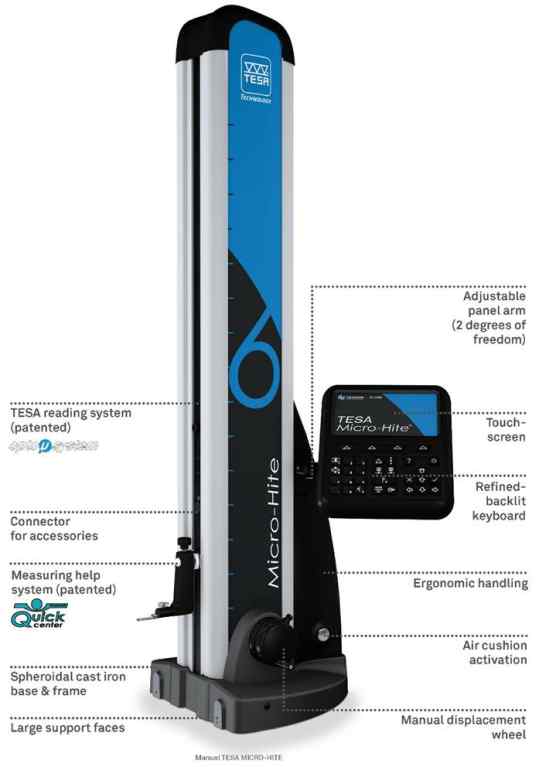

Measuring Head featuring
LED lights for hit status
Measuring System
Precision Glass Scale
Gage Movement
Air cushion movement for easy, precise positioning

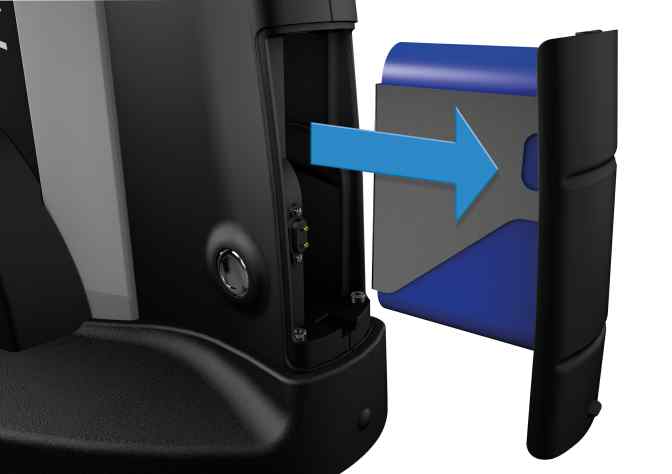

Battery Packs
For continuous operation, one battery pack supplies
full-shift power while the second set is being recharged.
Batteries may be recharged on or off-line
Dynamic Probes
Trigger-switch probe mechanism for “on-the-fly ”
bidirectional measurements
featuring
LED lights for hit status
Precision Glass Scale
