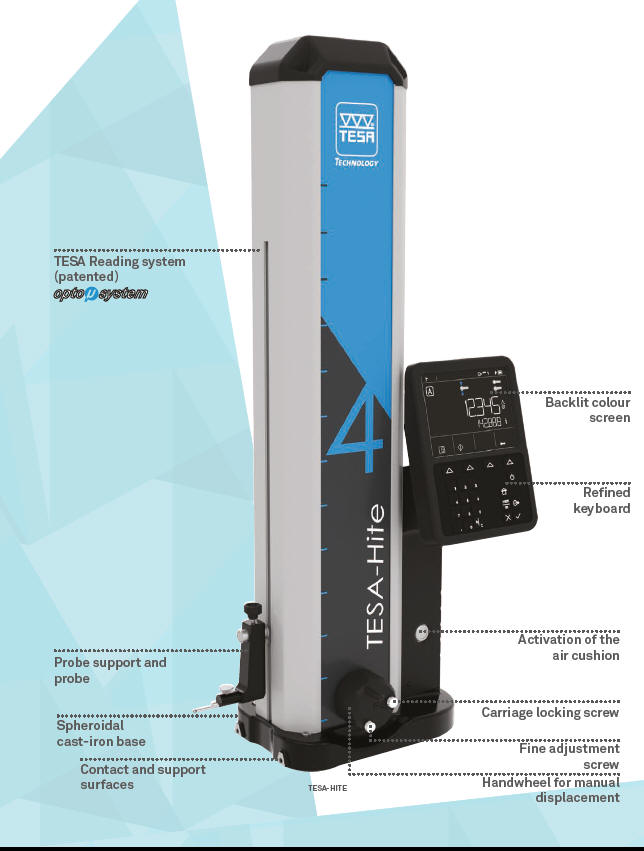

Current TESA-Hite 700 & 400
28in (700mm) or 16in (400mm) measuring range
Electronics
completely Protected
against liquids & dust
Built-in Air Cushion and fixed panel
Automatic diameter measuring using TESA's Patented system
which
determine
Highest and Lowest point
Parallesism and perpendicularity measurements
Compatable with Tesa Microhite Accessories,
SCS calibration certificateStandard
Insert holder with 5mm Dia ball
Rechargeable Battery with ac adapter
Setting Master
Standard insert with 5MM dia. tungsten Carbide ball tip.
Shopping Cart only for Credit Cards or PayPal!
Tesa-hite 400
#00730084 |
Tesa-hite 700
#00730085 |
| Measuring
Range 415mm (16in.) |
Measuring Range 715mm
(28in) |
|
Max. Perm errors
2.5+4L/1000 |
Max. Perm errors
2.5+4L/1000 |
|
Repeatability on
Surface: <2um on arc:<3um |
Repeatability on
Surface: <2um on arc:<3um |
|
Max. frontal
Perpendicularity |
Max. frontal
Perpendicularity |
|
Probing force(N) 1.5
|
Probing force(N) 1.5 |
|
Screen size (LxH mm)
92x121 |
Screen size (LxH mm)
92x121 |
|
Digit Size (mm)
10x 21 |
Digit Size (mm)
10x 21 |
|
Resolution (mm)
0.01, 0.001, 0.0001 |
Resolution (mm)
0.01, 0.001, 0.0001 |
|
Panel : IP65 |
Panel : IP65 |
|
Weight (KG) 24 |
Weight (KG) 30 |
