Current 2024 Prices

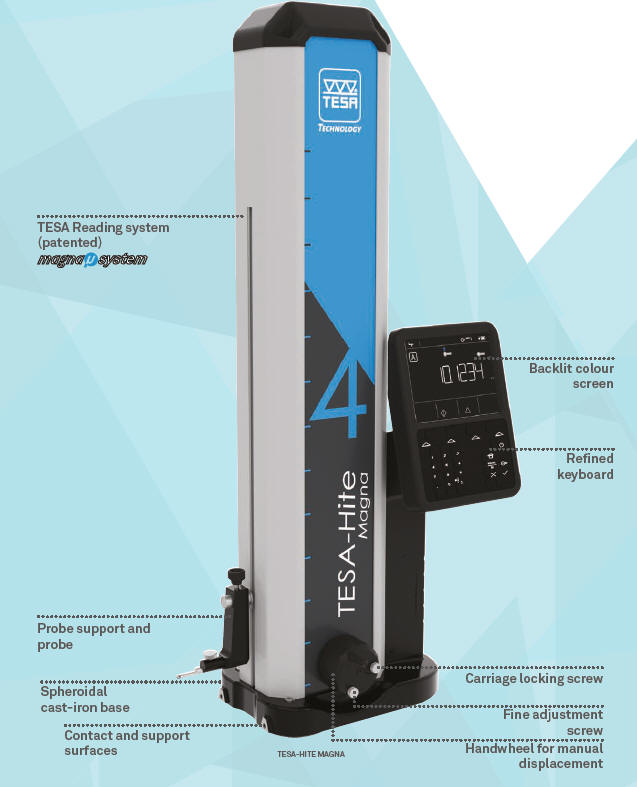

         NEW TESA-Hite Magna700 & 400

                     28in (700mm)  or  16in (400mm) measuring range

                     Electronics completely Protected against liquids & dust

                     Panel IP65

                     Automatic diameter measuring using TESA's Patented system

                     which determine Highest and Lowest point

                     Parallesism and perpendicularity measurements

                     Compatable with Tesa Microhite Accessories,

                     SCS calibration  certificateStandard

                     Insert holder with 5mm Dia ball

                     Rechargeable Battery with ac adapter

                     Setting Master

                     Standard insert with 5MM dia. tungsten Carbide ball tip.











  •

                                                                                      Payment Options:



                                                                     Shopping Cart only for Credit Cards or PayPal!  <





                                                                                       TESA-HITE Magna

                                                                Drop down Box for more models



HOME





Tesa-hite Magna 400

#007300822

Tesa-hite Magna 700

#00730083

Measuring Range 415mm (16in.)

Measuring Range 715mm (28in)

Max. Perm errors  2.5+4L/1000

Max. Perm errors  2.5+4L/1000

Repeatability on Surface: <2um   on arc:<3um

Repeatability on Surface: <2um   on arc:<3um

Max. frontal Perpendicularity

Max. frontal Perpendicularity

Probing force(N) 1.5

Probing force(N) 1.5

Screen size (LxH mm)  92x121

Screen size (LxH mm)  92x121

Digit Size (mm)  10x 21

Digit Size (mm)  10x 21

Resolution (mm)  0.01, 0.001, 0.0001

Resolution (mm)  0.01, 0.001, 0.0001

Panel : IP65

Panel : IP65

Weight (KG) 24

Weight (KG) 30
